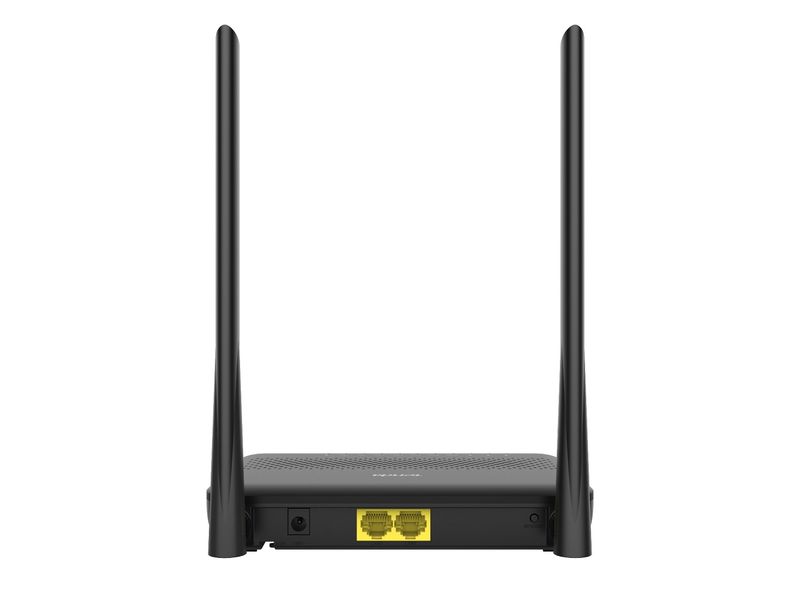

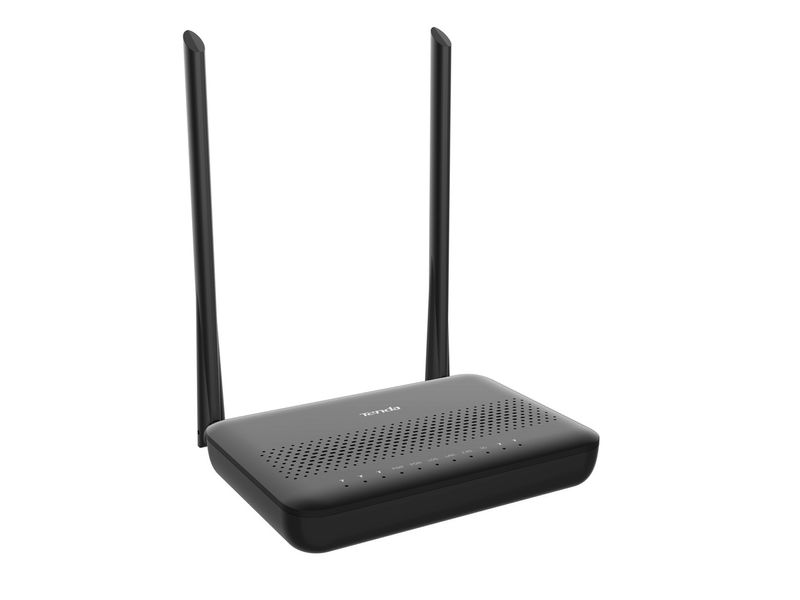

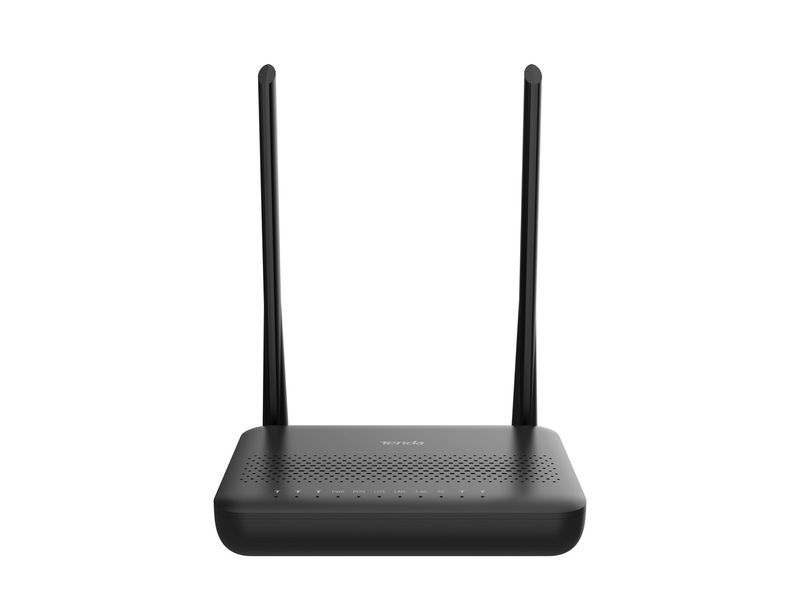

HG7C - ONT XPON TENDA Dual Band AC1200, 2 Puertos GE

IEEE Standards:

• IEEE 802
• 802.1Q
• 802.10
• IEEE 802.11
• 802.3U
• 802.3Z

PON Standards:

• GPON: ITU G.984.1, ITU G.984.2, ITU G.984.3, ITU G.984.4
• EPON: IEEE802.3ah

Interfaces:

• 1*SC/APC or SC/UPC (optional) Port
• 2*1000Mbps RJ45 LAN Ports
• 1*Power Port

LED Indicator:

• PWR
• PON
• LOS
• LAN
• 2.4G
• 5G

Button:

• 1*WPS/RST Button

Optical Mode:

• Class B+

Optical Wavelength:

• Transmit at 1310nm, Receive at 1490nm

Transmission Distance:

• 20km Max

Bandwidth:

• EPON: Upstream 1.25Gbps Max, Downstream 1.25Gbps Max
• GPON: Upstream 1.25Gbps Max, Downstream 2.5Gbps Max

• 1*HG7c
• 1*Power adapter
• 1*User Manual
• 1*RJ45 cable

Compatible con diferentes OLTs y con doble banda
